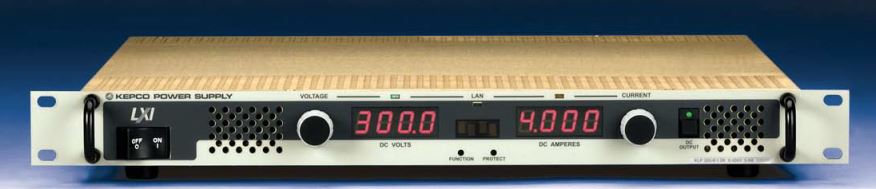

The KLP is a power supply class of instrument. The KLP supports all Power supply class functionality including measurement and trigger. The KLP has additional functionality beyond the class requirements, including a 100 step list, state storage, and hyperbolic power capability. The KLP Power Supply Series can be digitally programmed using SCPI commands and queries sent from a computer via either the IEEE 488.2 (GPIB) or RS 232 interface [-1200 Models only] or LAN interface [-1.2K Models only].

KLP REPLACES THE NEED FOR MULTIPLE POWER SUPPLIES BY EXPANDING THE OPERATING REGION. THE BREAKTHROUGH OF A HYPERBOLIC POWER LIMIT DELIVERS A FULL 1200 WATTS OVER AN EXPANDED OPERATING RANGE, NOT JUST A SINGLE POINT.

KLP Spec1



KLP Model Table (1200W)

KLP 10-150 - 0-10V  - 0-150A
KLP 20-120 - 0-20V  - 0-120A
KLP 36-60   - 0-36V  - 0-60A
KLP 75-33   - 0-75V  - 0-33.3A
KLP 150-16 - 0-150V  - 0-16A
KLP 300-8   - 0-300V  - 0-8A
KLP 600-4   - 0-600V  - 0-4A
